Histopathology and Cytology:

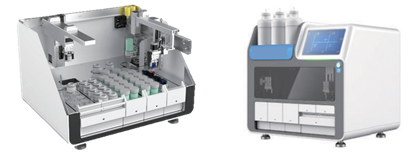

Automatic Liquid-Based All in One Cytology Slide Preparation and Staining System

The LBC (liquid-based cytology) system is highly automated for cytology slide preparation and staining for use in screening of non-gynecological specimen and all other cytologic categories defined by The Bethesda System for reporting cervicovaginal cytologic diagnoses.

Features:

Highly Automated: robotic arms are aided to free manpower

Multiple Functions: laser printing, slide processing and staining

Intelligent: automatic sample identification, sample information import, real-time system monitoring, and fault pre-alert
Innovative: original sample concentration measurement technology

Features:

Highly Automated: robotic arms are aided to free manpower

Multiple Functions: laser printing, slide processing and staining

Intelligent: automatic sample identification, sample information import, real-time system monitoring, and fault pre-alert
Innovative: original sample concentration measurement technology

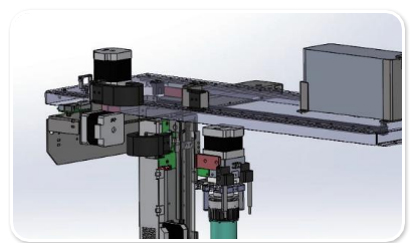

Laser printing module

The whole process is aided by robotic arm, which can automatically locate and grab the slides, and then match the sample with the slide to carry out digital laser printing.

Internal Structure Diagram:

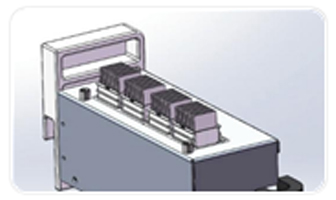

Staining module

Automatically identify the quantity of dye solution and calculate the number of slides.

Constant temperature control of dyeing bath to ensure dyeing performance.

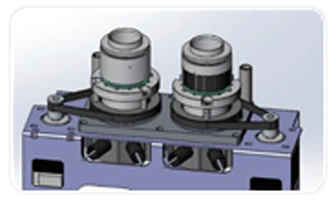

Sample module

Two independent chambers comprise 20 positions each for 10 sets of samples and consumables.

Samples are tested timely upon checked in as the double-chamber rotates to work continuously without interruption.

Uncapping and detection module

The robotic arm is able to perform automatic sample uncapping and mixing functions. Unique technology is used to determine the sample concentration and cell density.

Reagents and Consumables

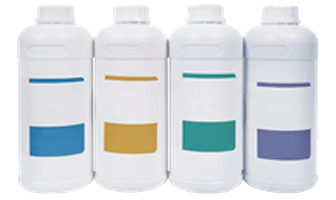

Cell preservation solution

Ensure cell integrity and fixity, and avoid cell atrophy, dissolution and enlargement. Can remove mucus and blood from the specimen.


The specimen can be preserved for more than 21 days. The preserved cells can be used for paraffin preparation.

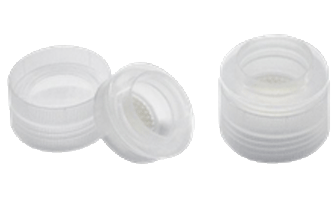

Membrane Filter

High precision of filtration membrane diameter to remove impurities and screens out effective cells that can be evenly press-printed onto the slide.

Papanicolaou (PAP) Staining Kit

The improved formula can shorten dyeing time and ensure good coloring performance, and guarantee cell nuclei, cytoplasm and membranes in bright color for better diagnosis.

Eco-friendly as it does not contain heavy metal substances and harmful ingredients.

Specifications

Slide Prep Principle Membrane filtration
Capacity 20 slides
Dyeing Time 16 mins. / batch
Reagent Capacity 400 slides per batch
Temperature Control Constant temperature control of the whole process to ensure dyeing effect
Compatible Specimen Gynecological, and non-gynecological specimen
Functions Slide preparation function, staining function, laser printing function
Slide Field Circle Diameter 15 mm, 18 mm, 22 mm
